High Throughput Assay for Human Adenosine Kinase

PRECICE® ADK Assay Kit provides a convenient, high throughput compatible and non-radioactive assay for in vitro measurement of ADK activity and for Drug Discovery of novel ADK inhibitors. Novel tool for Drug Discovery, this kit allows HTS search of novel ADK inhibitors.

Principle:

Adenosine kinase uses ATP as the phosphate donor. It transfers the terminal phosphate group of ATP to a substrate, producing ADP as a by-product. The assay is based on the use of inosine as a surrogate ADK substrate and a coupled reaction involving a highly active IMPDH (Inosine Monophosphate Dehydrogenase) for a direct measurement of the inosine monophosphate (IMP) formed by ADK. In the presence of inosine and ATP, ADK catalyses the phosphorylation of inosine to form IMP and ADP. IMP is then immediately oxidized to XMP by a highly active IMPDH in the presence of NAD, leading to NADH2 formation.

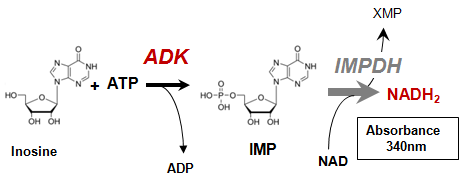

ADK Assay Kit reaction schema

PRECICE® ADK Assay Kit

Ref. #K0507-01
#REF SIZE PRICE
#K0507-01.01 1 plate (96 assays) 421.00 € Inquiry
#K0507-01.05 5 plates (5 x 96 assays) 1680.00 € Inquiry

Updated on 03 October 2024.

Kit is provided in stable lyophilized form and shipped without dry ice

Download In vitro ADK asssay protocol (User manual)

Key Features

Convenient

  • Non-radioactive
  • Homogenous
  • Continuous absorbance monitoring at 340nm

Quantitative

  • The IMP is immediately transformed into NADH2 in a quantitative manner allowing for accurate kinetic analysis

High-Throughput Format

  • The assay is performed in standard multi-well microplates
  • Utilizes commun plate reader fitted with 340nm filter
  • Meets the requirements of a HTS assay (Z' factor 0.68)

Reliable

  • Validated with known ADK inhibitor A-134974 and nucleoside analog ribavirin known to be phosphorylated by adenosine kinase

For rapid analysis of in vitro phosphorylation of novel nucleoside analogs for human adenosine kinase see our PRECICE® ADK Phosphorylation Assay Kit.

ADK role in human body

Adenosine kinase is a ubiquitous enzyme regulating intra- and extracellular concentrations of adenosine (AR), an important modulator of central nervous system functions and a signal molecule involved in hypoxia, inflammation and nociception. Together with adenosine demainase, adenosine kinase regulates intra- and extracellular cellular adenosine concentration. Inhibition of adenosine kinase results in selective increase of local adenosine concentrations and reduced seizure susceptibility and nociception in vivo(3). ADK dysfunction is involved in several pathologies, including diabetes(13), epilepsy(6), and cancer. Consequently, ADK emerges as a rational therapeutic target, and adenosine-regulating drugs have been extensively tested (1) as new analgesic and anti-inflammatory agents(4) to treat schizophrenia(7) or to limit brain injury after an ischemic stroke(8).

Validation

The use of PRECICE® ADK Screening Assay Kit for the screening of ADK inhibitors and IC50 measurements was validated with compound A-134974, a known ADK inhibitor (Sigma-Aldrich, under license from Abbott Laboratories). Z'-Factor was calculated from 44 negative (no ADK inhibition) and positive (inhibition of ADK with 500nM A-134974) and measured as 0.68, which is an excellent level of performance for a screening assay

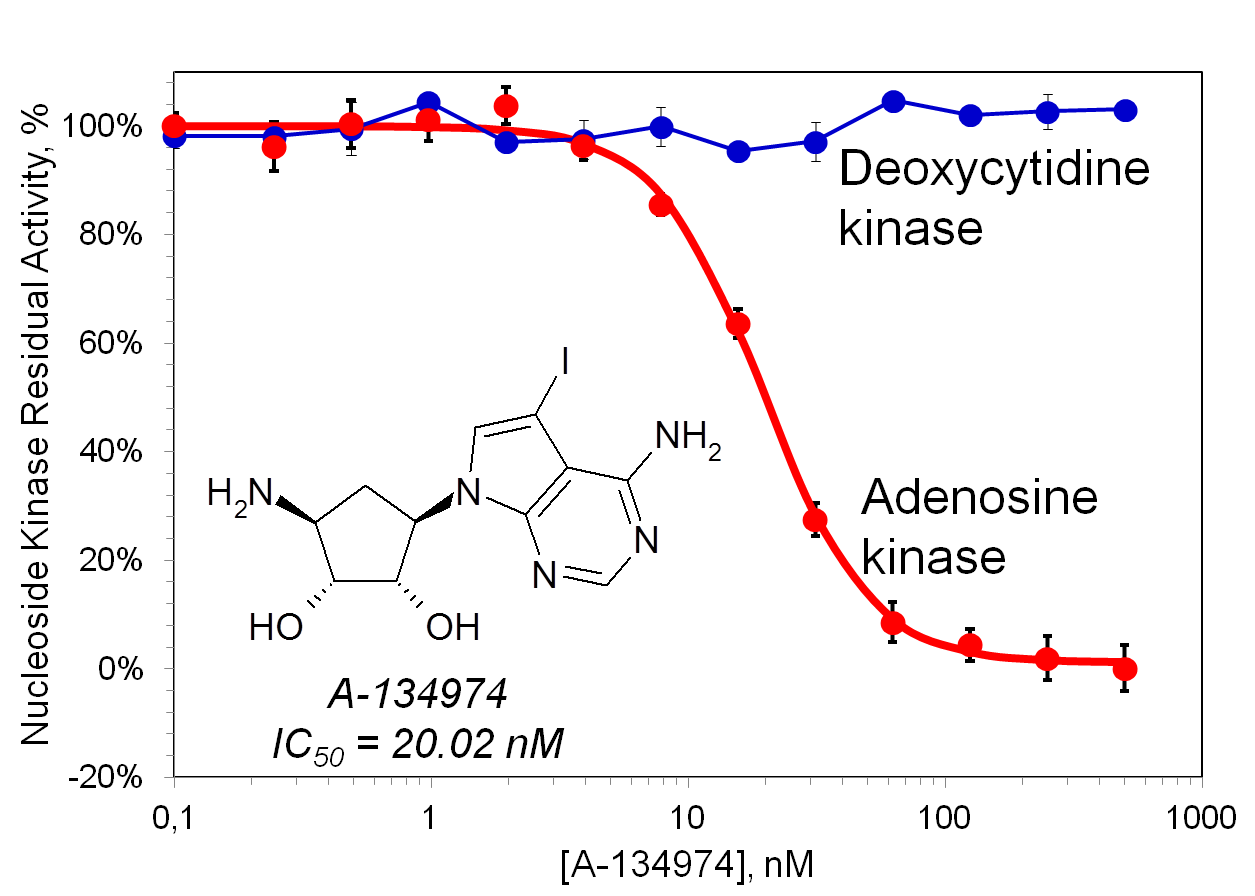

ADK Inhibition Curve Graph
ADK Inhibition curve with compound A-134974 at 12 different concentrations.
All data points represent the mean (+/-SD) of 8 wells (2 wells - duplicate - on 4 independent plates). IC50 was determined by fitting a 4-parameter non-linear curve to the data with least-square method. IMPDH activity assays were run to confirm that IMPDH is not inhibited by compound A-134974 (data not shown
Scientific Works citing NOVOCIB Adenosine Kinase and PRECICE® ADK Assay kits:
  1. M. Orlicka-Płocka, A. Fedoruk-Wyszomirska, D. Gurda-Wozna, P. Pawelczak , P. Krawczyk, M. Giel-Pietraszuk, G. Framski, T. Ostrowski, E. Wyszko Implications of Oxidative Stress in Glioblastoma Multiforme Following Treatment with Purine Derivatives. Antioxidants 2021, 10, 950.
  2. L.M. Johnson, O.J. Smith, D.A. Hahn, C.F. Baer. Short-term heritable variation overwhelms 200 generations of mutational variance for metabolic traits in Caenorhabditis elegans. Evolution. 2020 Nov;74(11):2451-2464.
  3. K. DANIELYAN, R. D. VARDANYAN, A. SIMONYAN, A. S. SAGYAN The sole role of PRPS-1 in the regenerative processes after experimental stroke Poster#: 459.07/A7 2017 Neuroscience Meeting Planner.
    Washington, DC: Society for Neuroscience, 2017.
  4. U. Nayar, J. Sadek, J. Reichel, D. Hernandez-Hopkins, G. Akar, P.J. Barelli, M.A. Sahai, H. Zhou, J. Totonchy, D. Jayabalan, R. Niesvizky, I. Guasparri, D. Hassane, Y. Liu, S. Sei, R.H. Shoemaker, J. D. Warren, O. Elemento, K.M. Kaye, E. Cesarman. Identification of a nucleoside analog active against adenosine kinase-expressing plasma cell malignancies. J Clin Invest. 2017 Jun 1;127(6):2066-2080.
  5. K.S. Toti, D. Osborne, A. Ciancetta, D. Boison, K.A. Jacobson. South (S)- and North (N)-Methanocarba-7-Deazaadenosine Analogues as Inhibitors of Human Adenosine Kinase Kiran J. Med. Chem. 2016, 59, 14, 6860-6877.
  6. M.K. Bjursell, H.J. Blom, J.A. Cayuela, M.L. Engvall, N. Lesko, S. Balasubramaniam, G. Brandberg, M. Halldin, M. Falkenberg, C. Jakobs, D. Smith, E. Struys, U. von Döbeln, C. M. Gustafsson, J. Lundeberg, A. Wedell. Adenosine Kinase Deficiency Disrupts the Methionine Cycle and Causes Hypermethioninemia, Encephalopathy, and Abnormal Liver Function. Am J Hum Genet. 2011 Oct 7; 89(4): 507-515.
  7. E. CESARMAN, U. NAYAR, J.D. WARREN, J. SADEK US20190225643A1 Novel nucleoside analogs and use thereof in therapeutic treatment. Patent application filed by Cornell University
